订购指南 Ordering Information——————

英制

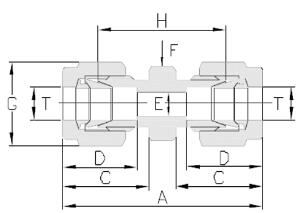

T 管外径 in.	型 号	A in.	C in.	D in.	E in.	F 六角尺寸 in.	G 六角尺寸 in.	H in.
1/8	OR-U-TF2	1.40	0.60	0.50	0.09	7/16	7/16	0.88
3/16*	OR-U-TF3	1.47	0.63	0.54	0.12	7/16	1/2	0.95
1/4	OR-U-TF4	1.61	0.70	0.60	0.19	1/2	9/16	1.03
5/16*	OR-U-TF5	1.69	0.73	0.64	0.25	9/16	5/8	1.11
3/8	OR-U-TF6	1.77	0.76	0.66	0.28	5/8	11/16	1.19
1/2	OR-U-TF8	2.02	0.86	0.90	0.41	13/16	7/8	1.22
5/8*	OR-U-TF10	2.05	0.86	0.96	0.50	15/16	1	1.25
3/4	OR-U-TF12	2.11	0.86	0.96	0.62	1-1/16	1-1/8	1.31
1	OR-U-TF16	2.55	1.04	1.23	0.88	1-3/8	1-1/2	1.59

　

公制

T 管外径 mm	型 号	A mm	C mm	D mm	E mm	F 六角尺寸 mm	G 六角尺寸 mm	H mm
3	OR-U-TF3M	35.3	15.3	12.9	2.4	12	12	22.1
6	OR-U-TF6M	41.0	17.7	15.3	4.8	14	14	26.2
8	OR-U-TF8M	43.2	18.6	16.2	6.4	15	16	28.2
10	OR-U-TF10M	46.2	19.5	17.2	7.9	18	19	31.0
12	OR-U-TF12M	51.2	22.0	22.8	9.5	22	22	31.0
14	OR-U-TF14M	52.0	22.0	24.4	11.1	24	25	31.8
16*	OR-U-TF16M	52.0	22.0	24.4	12.7	24	25	31.8
18*	OR-U-TF18M	53.5	22.0	24.4	15.1	27	30	33.3
22*	OR-U-TF22M	55.0	22.0	26.0	18.3	30	32	34.8
25*	OR-U-TF25M	65.0	26.5	31.3	21.8	35	38	40.4

*：无常规库存
